Final Marks with Comments

Question	Mark	Comment

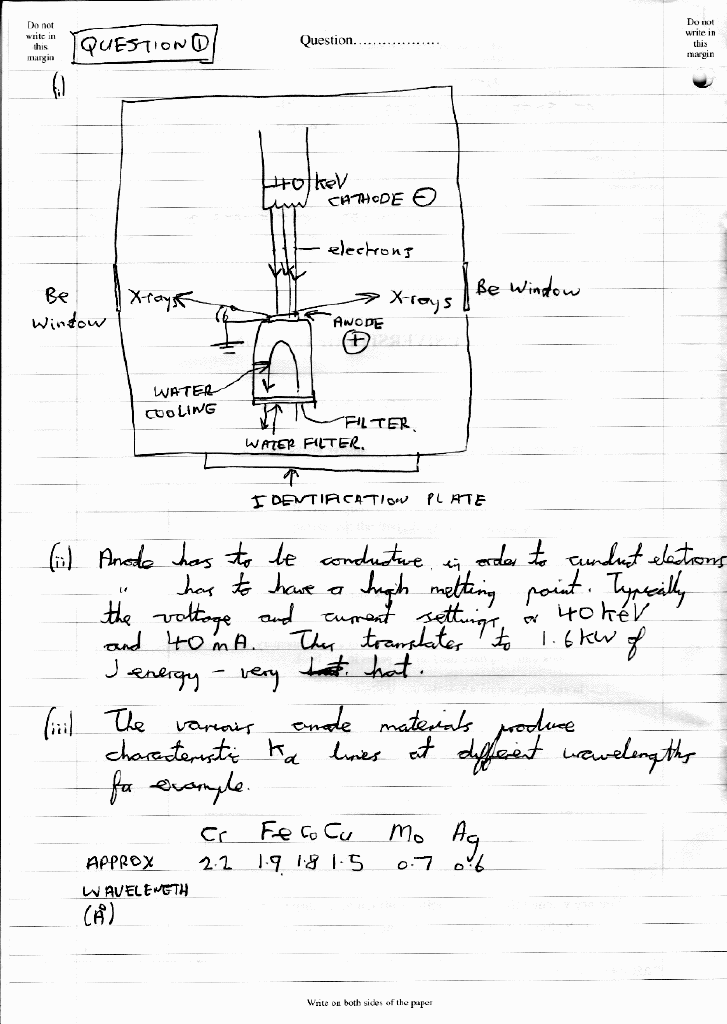

1	10/10	Excellent

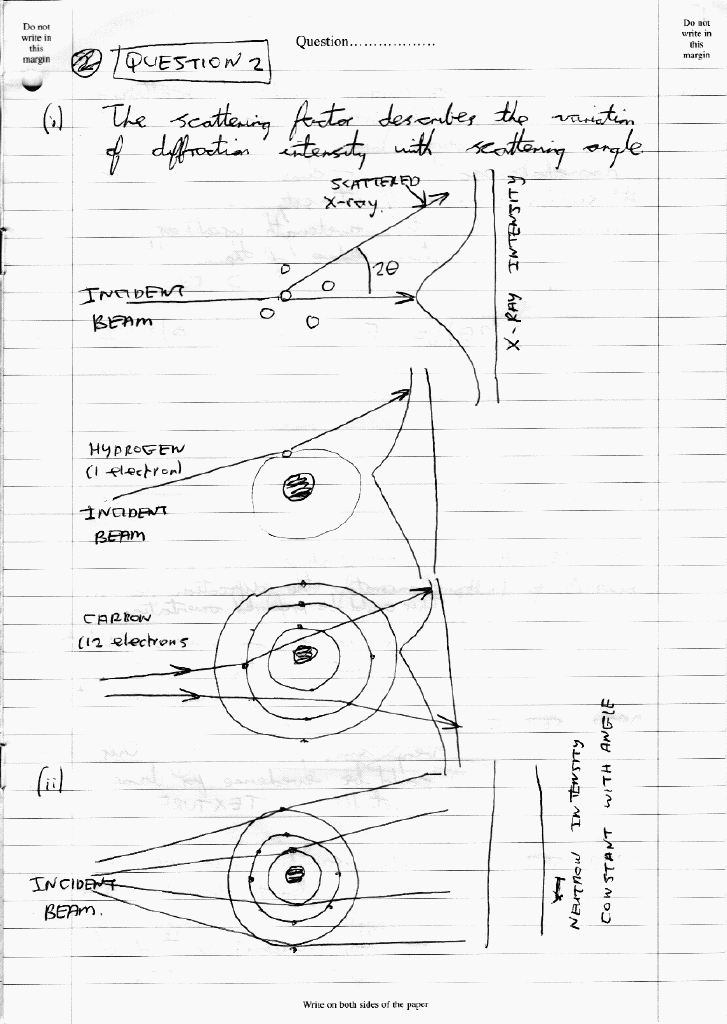

2	5/10	(i) Diagrams different to that expected and both showed insufficient distinction between H & C; (ii) Diagram incorrectly showed neutron scattering by electrons

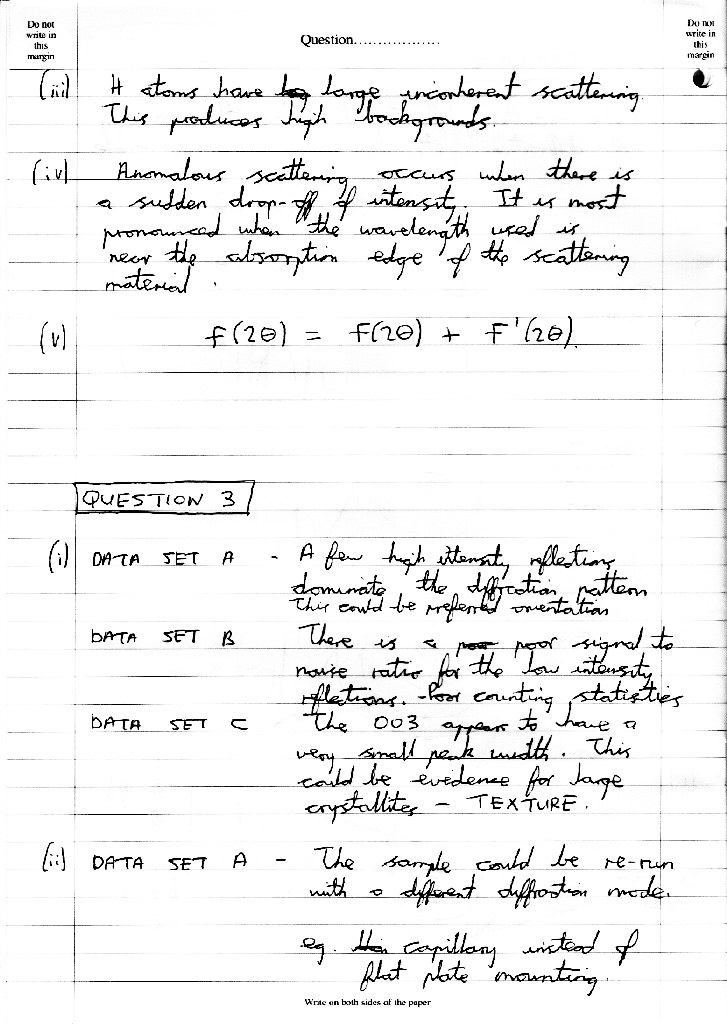

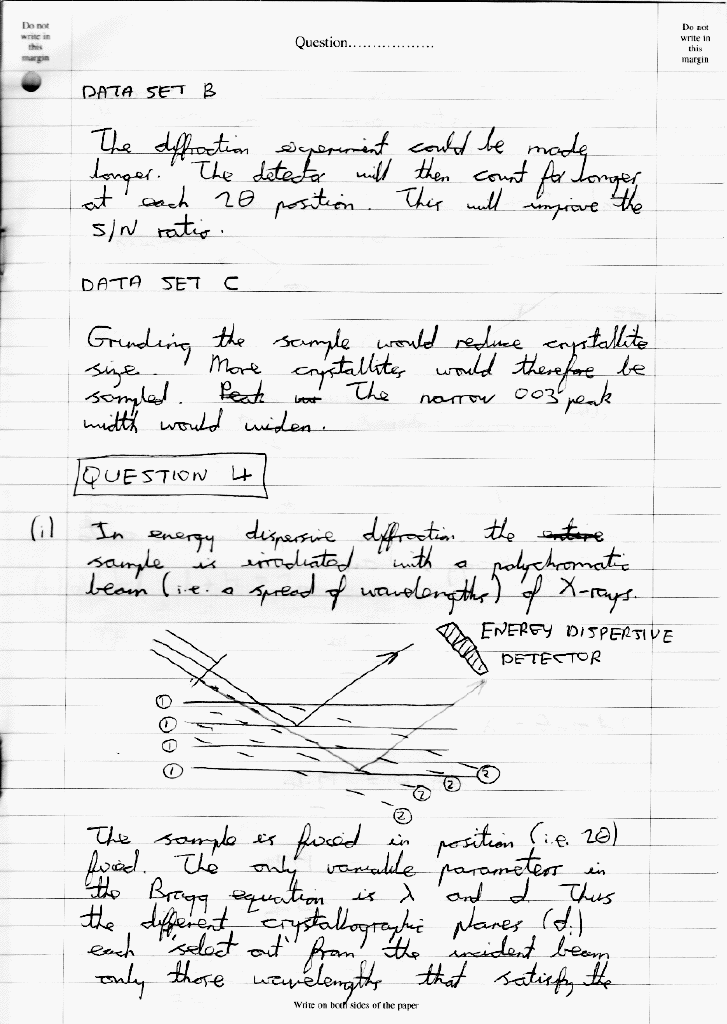

3	3/10	(i)+(ii) Wrong answer for data sets B & C

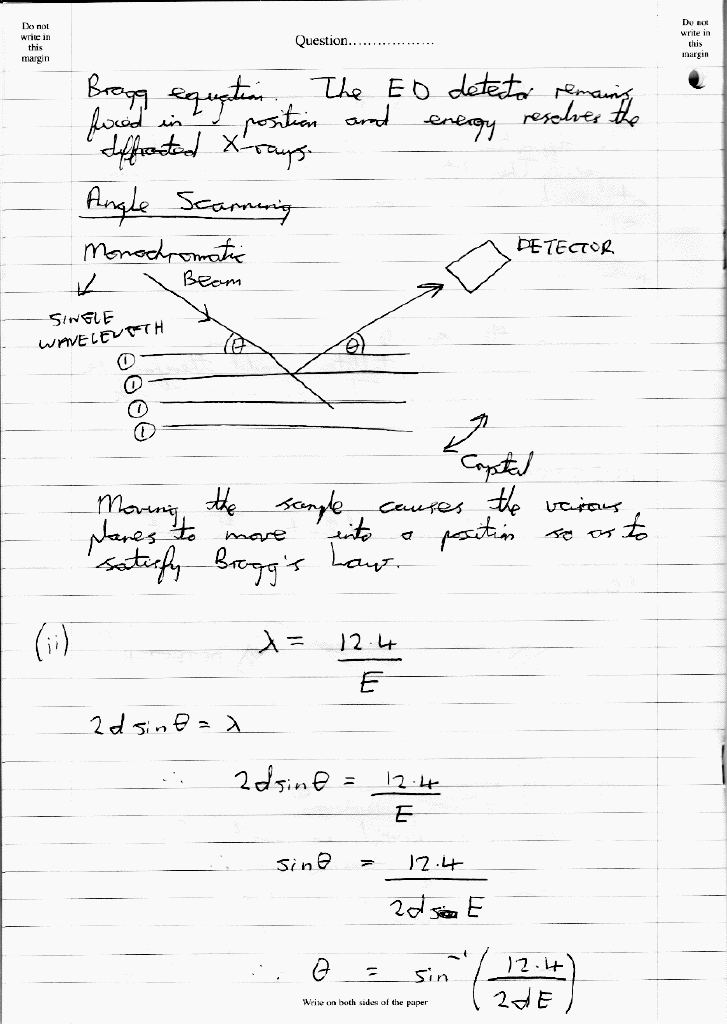

4	9/10	Detector angle in EDD is at 2q

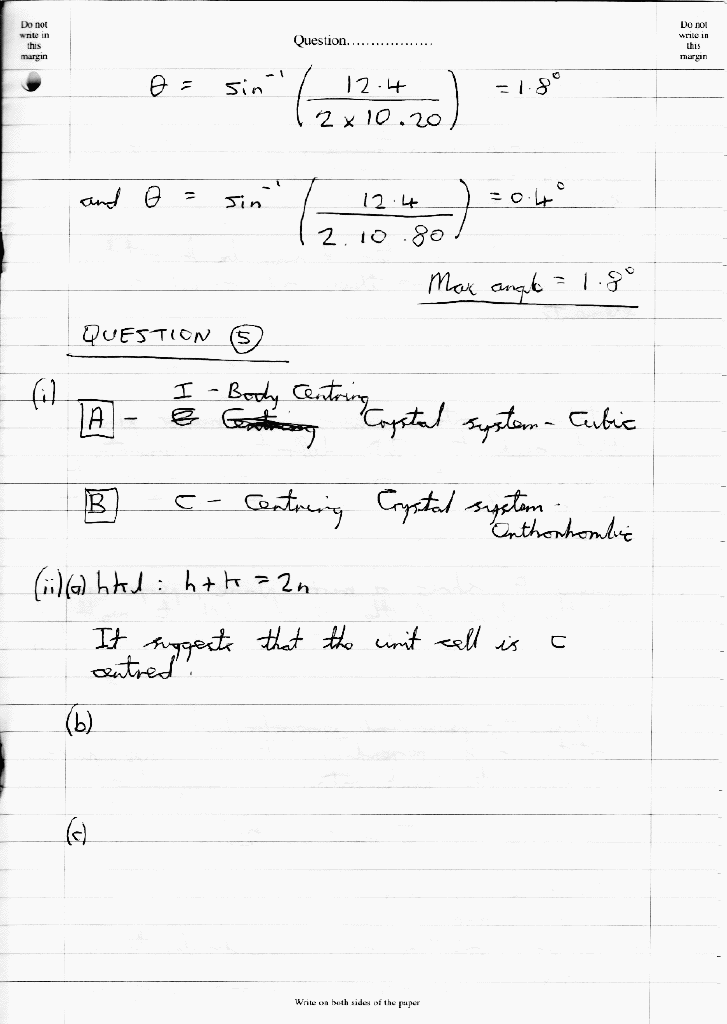

5	6/10	Incomplete

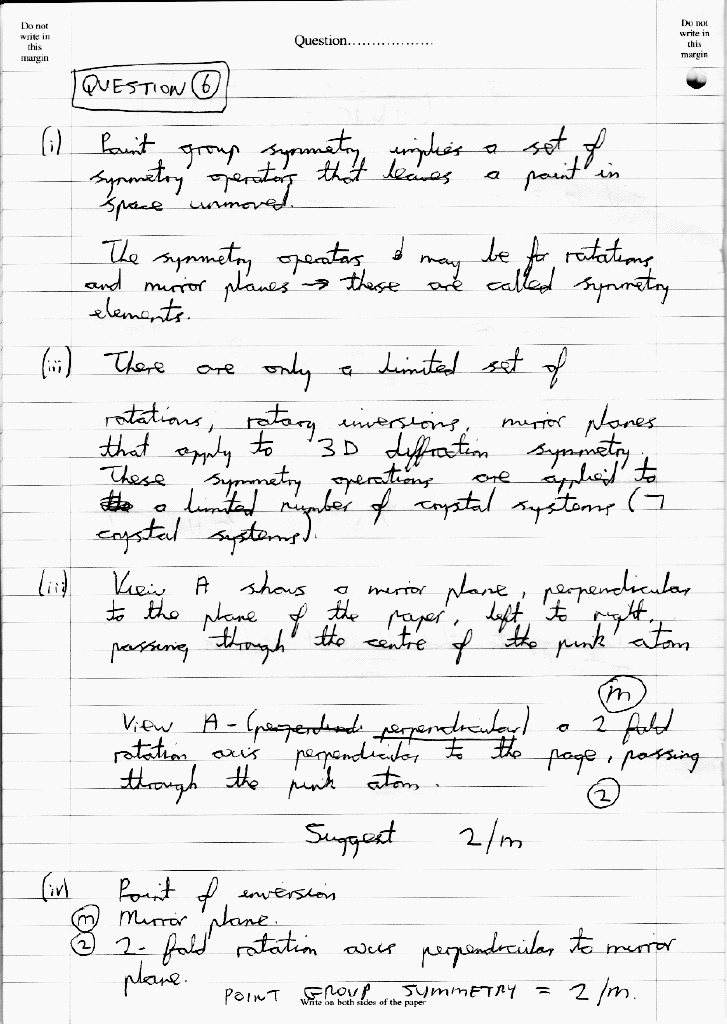

6	7/10	(ii) Need to specify which elements and why; (iii) View A shows a 3-fold

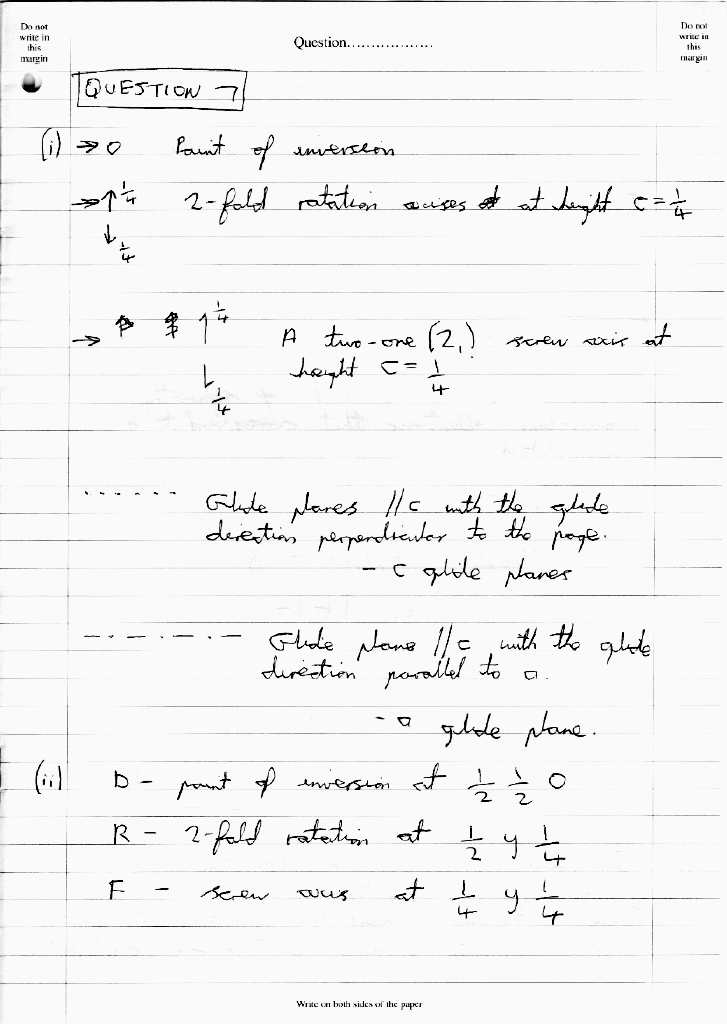

7	7/10	(i) Almost correct except for .-.-.

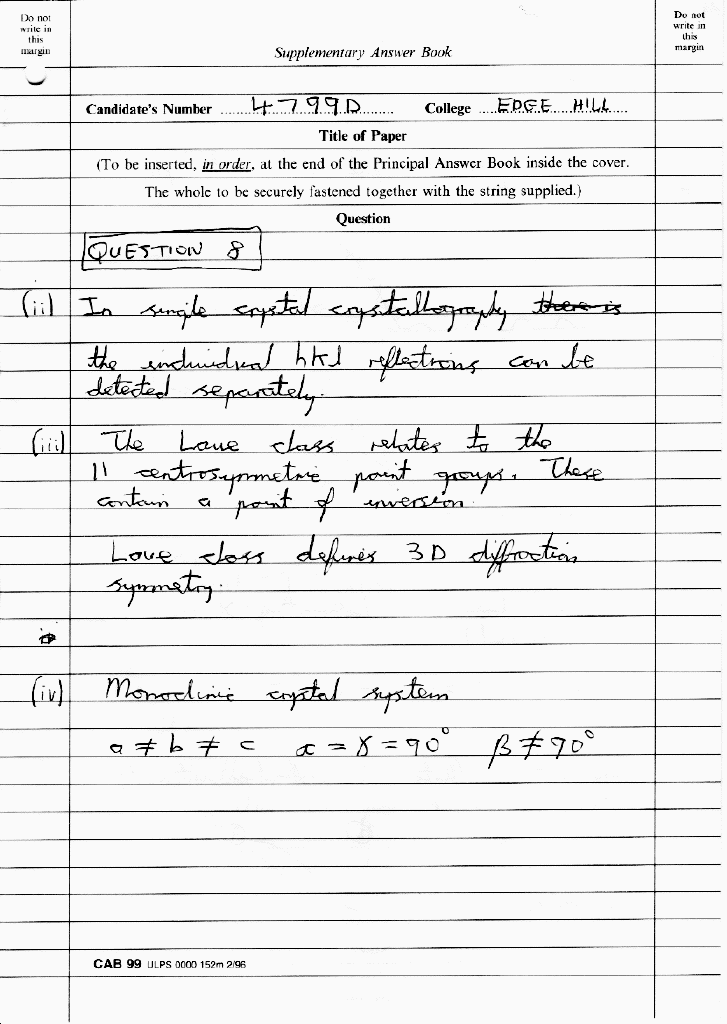

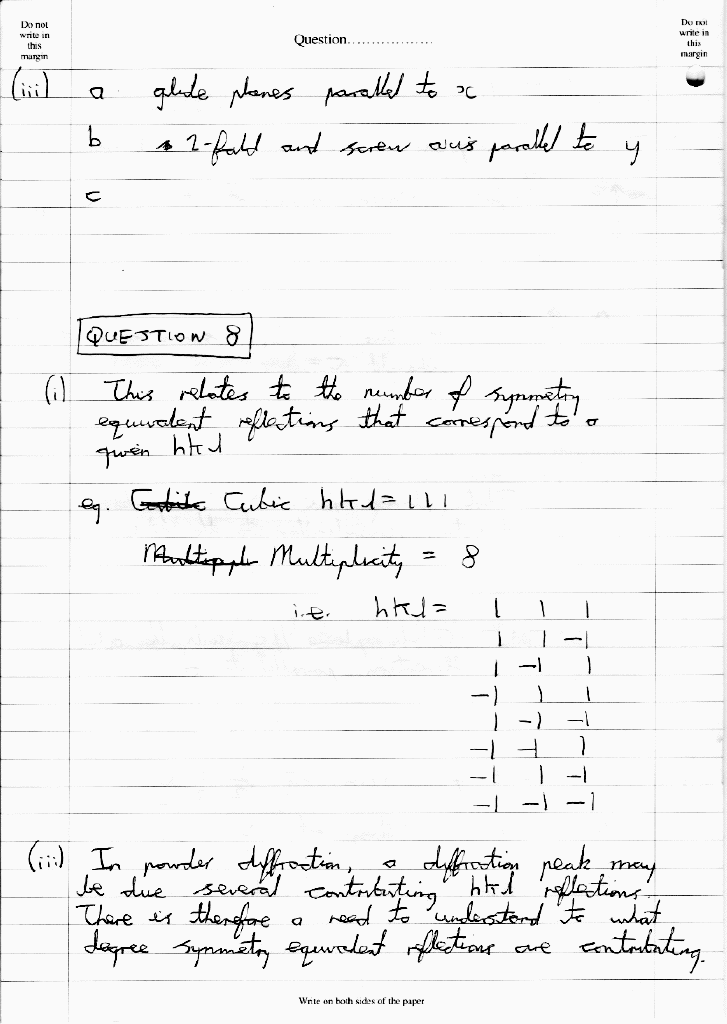

8	4/10	(iii) Not answered question; (iv) Wrong

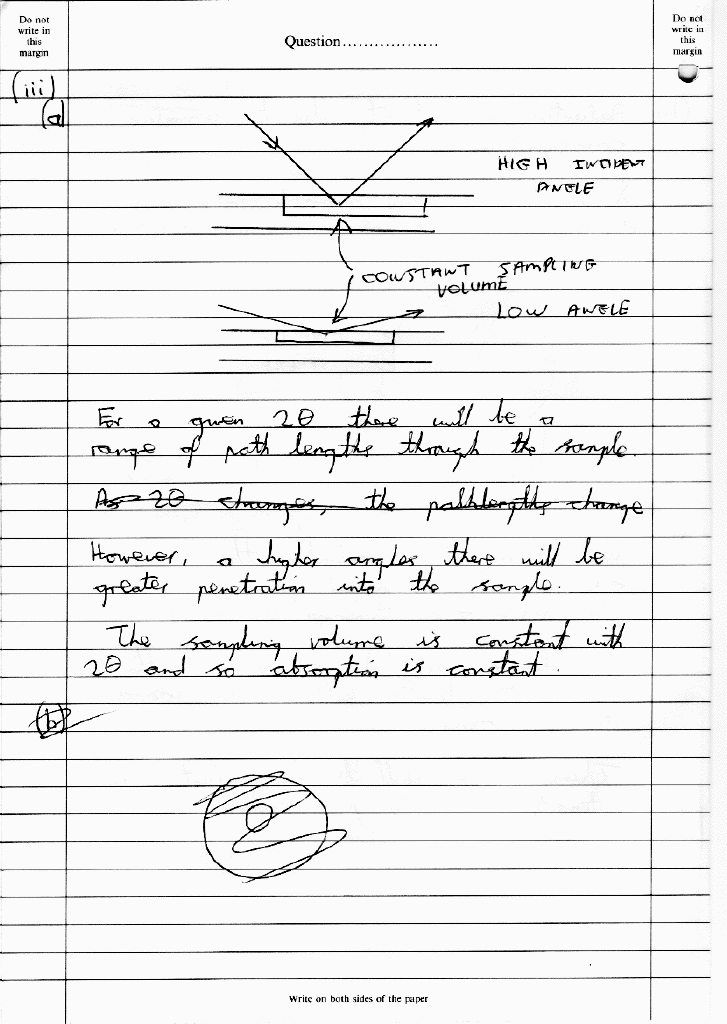

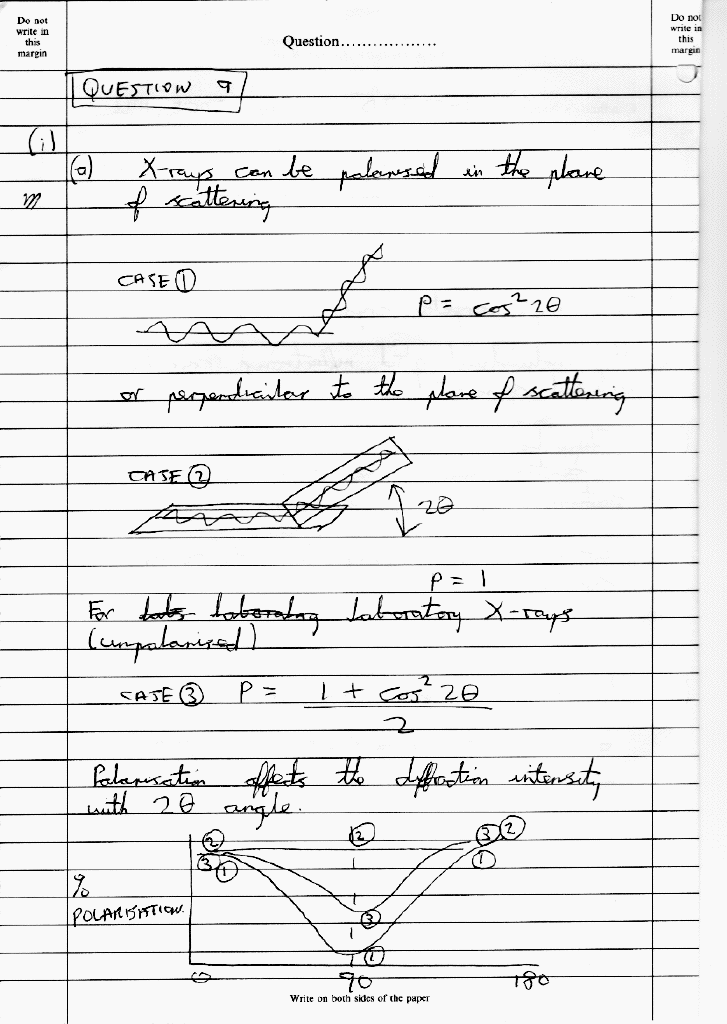

9	8/10	(iii) Excellent, but no mention of the effect of absorption on absolute intensities

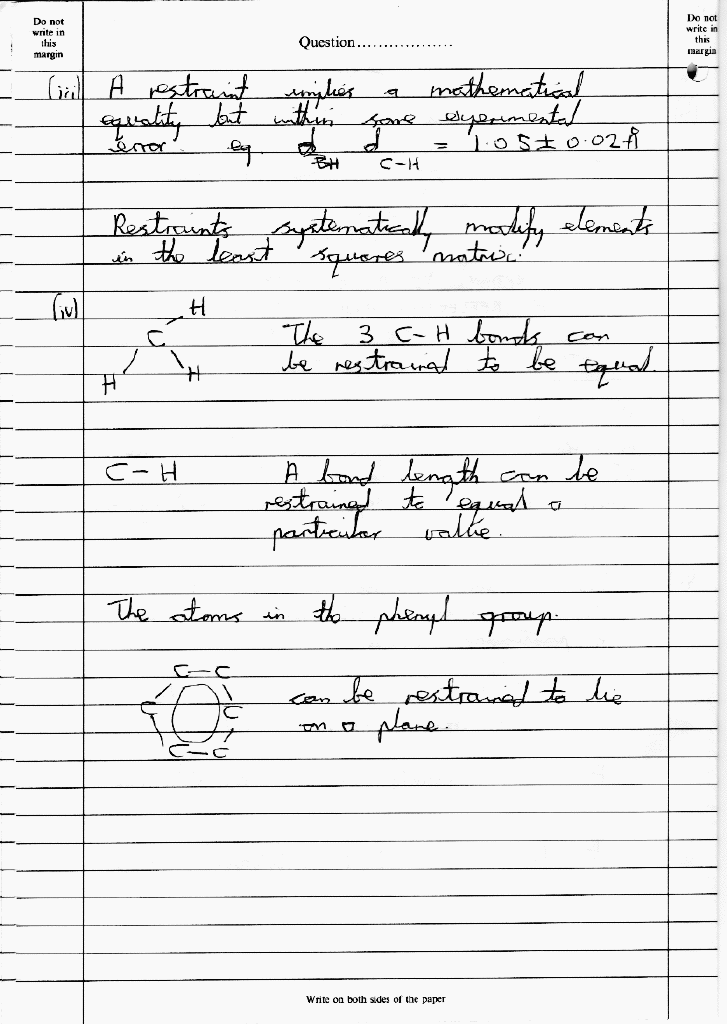

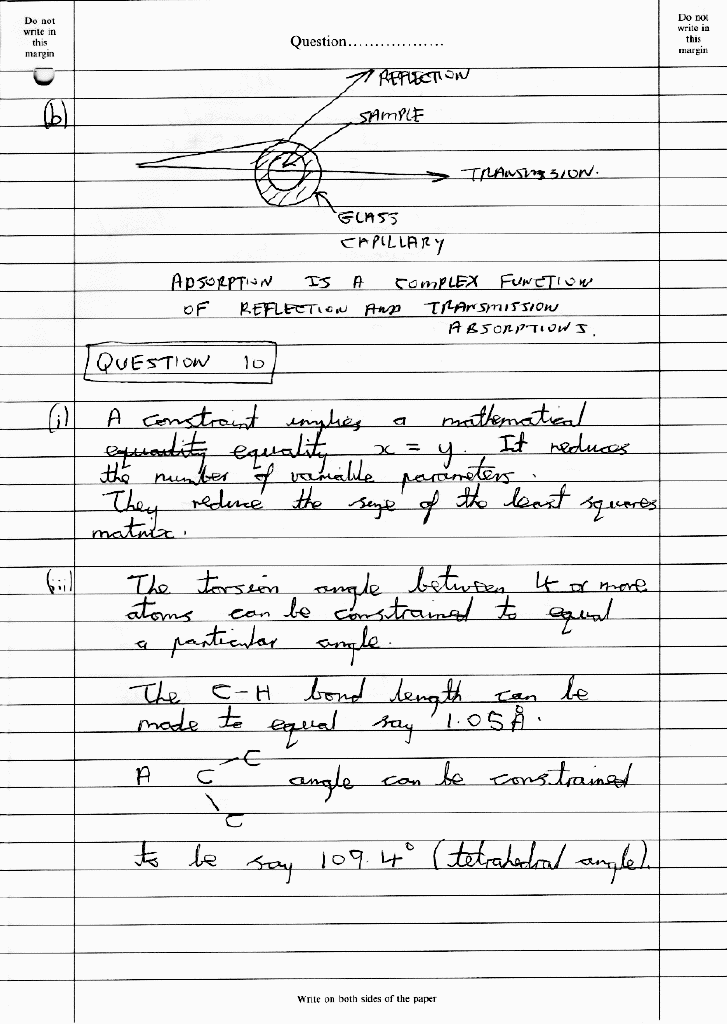

10	7/10	(ii) These were examples of restraints, not constraints

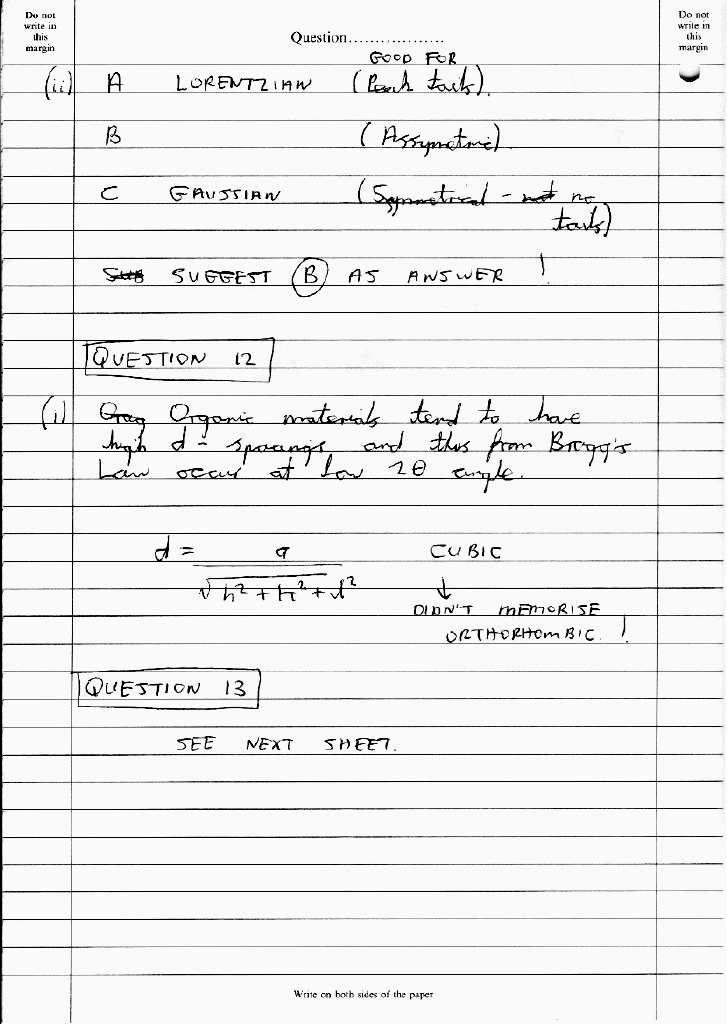

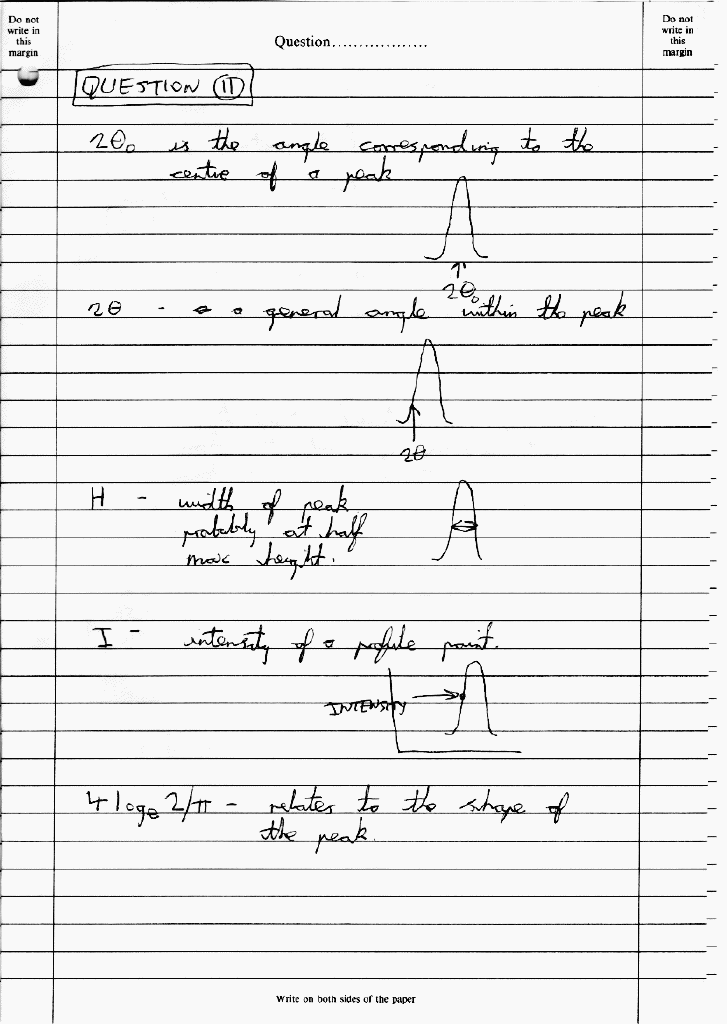

11	8/10	(ii) Very good, but function given is a Gaussian
12	1/10	Incomplete

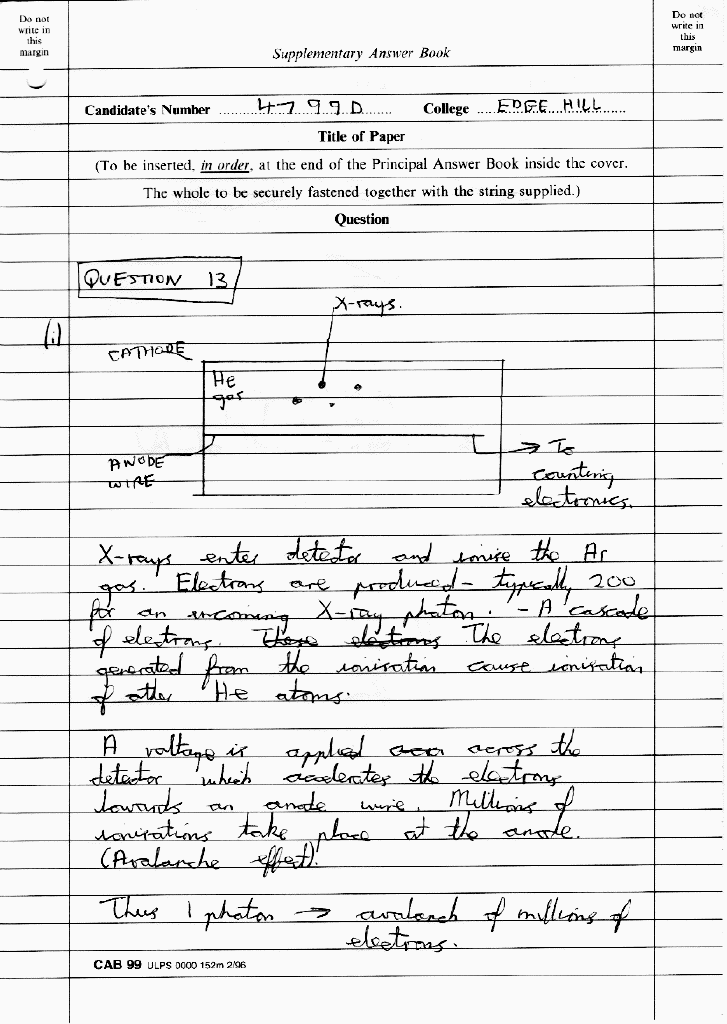

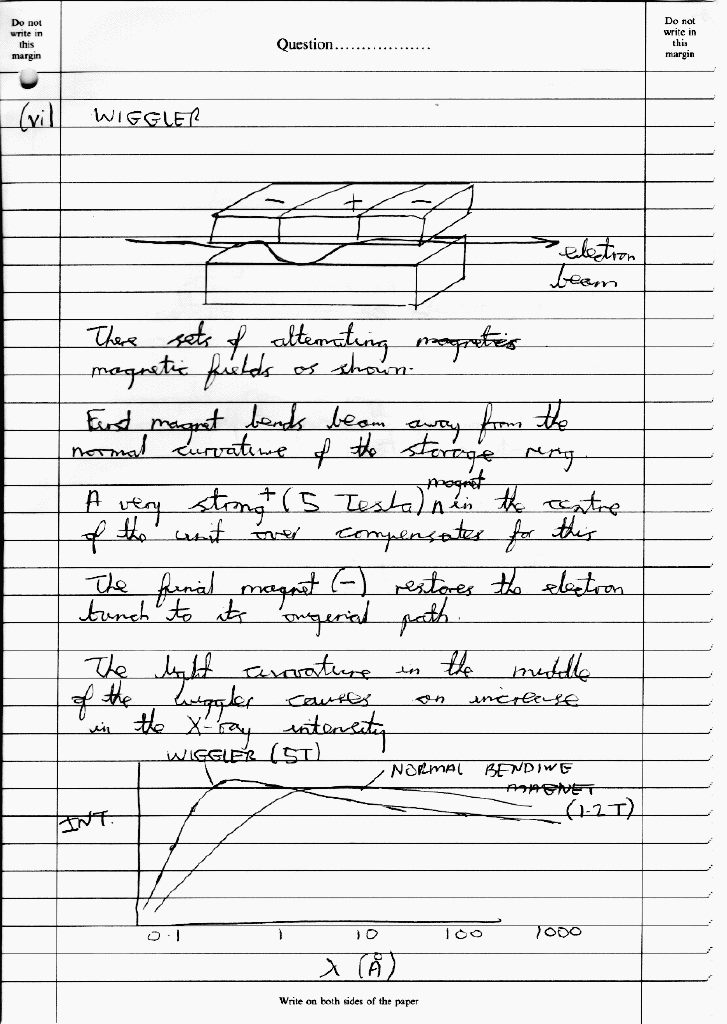

13	7/10	(i) He-3 is used for neutrons, not X-rays; (ii) Need to state that I is proportional to F squared; (iii) Excellent text on Wiggler gets bonus mark here!

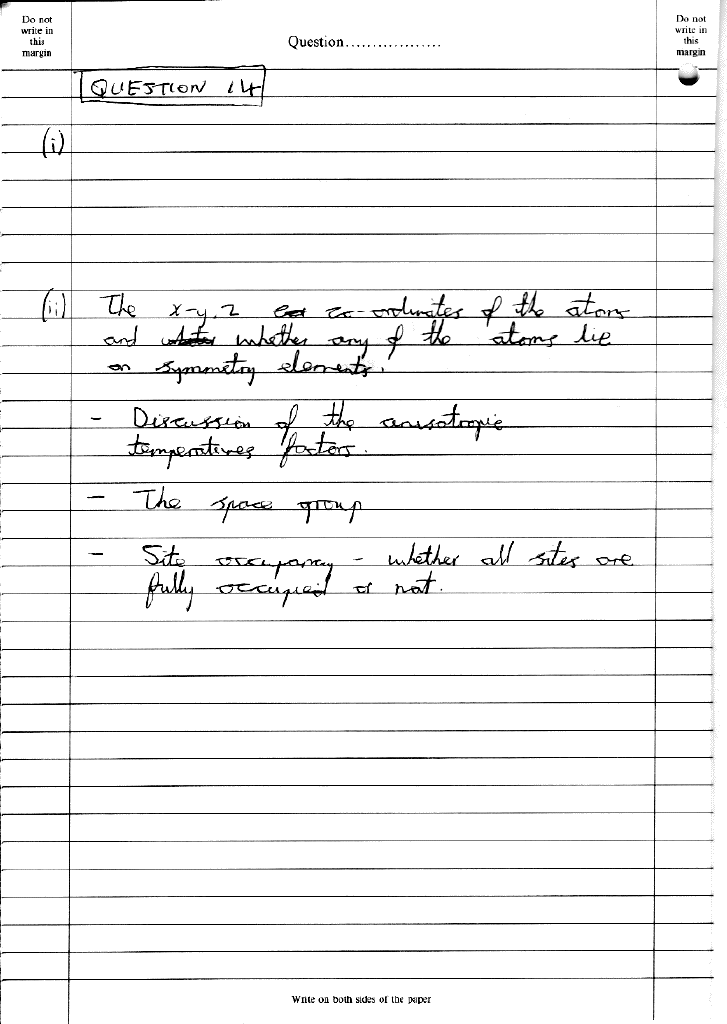

14	3/10	Incomplete

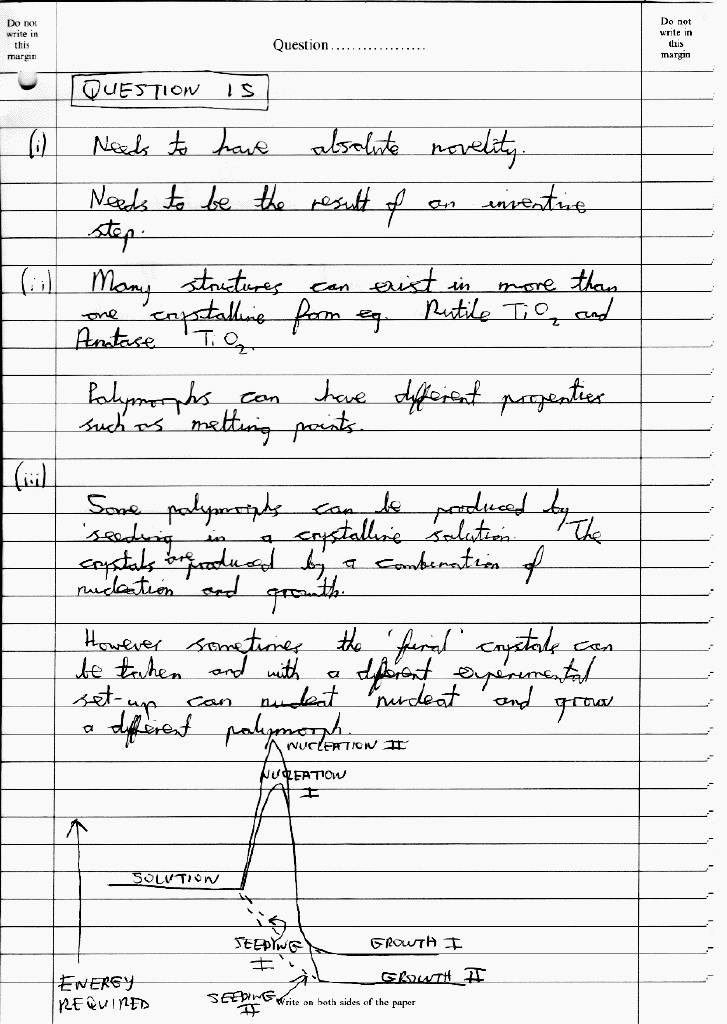

15	6/10	(iii) True, but not the answer that was sought; (v) Incomplete - out of time?
