Quality Level Required for New Course Material

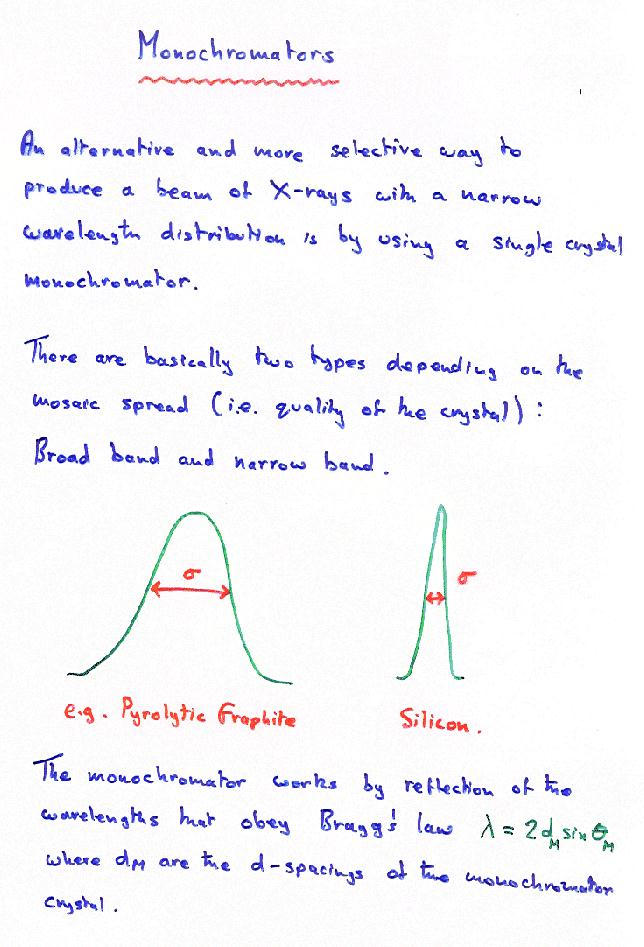

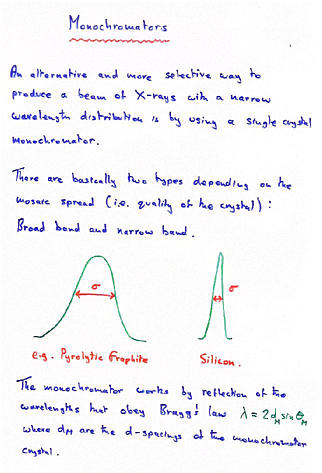

Previous course material for the old MSc Crystallography course was often taught using a whiteboard and pens or with transparencies on an overhead projector. The standards required for web-based material are much higher as illustrated below. Compare the hand-written overhead done with coloured pens circa 1994 (shown left) with that of today's web-based format (shown right).

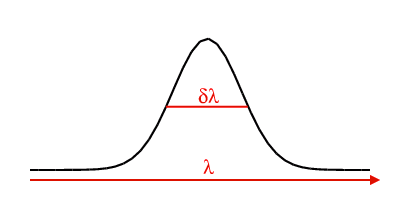

... of the crystals. Two commonly used materials are pyrolytic graphite and silicon, which can be used to make broad band and narrow band (Dl / l) monochromators, respectively. For pyrolytic graphite, the mosaic spread is relatively broad in contrast to silicon in which the alignment of the mosaic blocks is near perfect. The monochromator works by reflection of the wavelengths that obey Bragg's Law for the particular d-spacings of the monochromator. For a silicon crystal (which is cubic with a unit cell size equal to 5.4309 Å), the largest d-spacing (which is from the (111) planes) is 3.136 Å. Application of the Bragg equation (l = 2d sin q) shows that ...
